GB/ASTM/ASME/EN Water collection box,tank,pipe,barrel

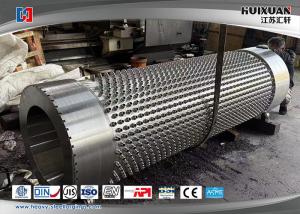

Product Name: Collection Tank
Material: WB36
Example of application scenarios
a. Steam system
Purpose: Collect the condensate water after the use of steam, discharge it through a steam trap and recycle it.
Design focus: High-temperature resistance (above 200℃), anti-oxygen corrosion (with the installation of a hydrophobic cooler).
b.Compressed air system
Usage: To separate moisture and oil stains from compressed air and protect downstream equipment.
Design focus: Built-in gas-liquid separator, material should be oil-resistant (such as stainless steel or coated carbon steel).
1.The definition and standard of WB36 steel pipe
Corresponding national standard: GB/T 5310-2017 "Seamless Steel Tubes for High-Pressure Boilers" (the old version was GB5310), with a grade of 20G. However, some enterprises are accustomed to calling it WB36 (which may be related to German standards or industry practices).
International standards: Similar materials correspond to ASTM A106 Gr.B, EN 10216-2 P24, etc.
It is mainly used for high-temperature and high-pressure pressure-bearing components such as superheaters, reheaters and economizers in power station boilers.
2. Chemical composition and mechanical properties
Project Requirements
Chemical composition of C (carbon) : 0.17% ~ 0.23%, Si (silicon) 0.35% or less, Mn (Mn) : 0.35% ~ 0.65%
The content of alloying elements such as Cr (chromium) and Mo (molybdenum) is extremely low (pure low-carbon steel)
Tensile strength ≥410 MPa
Yield strength ≥245 MPa
Elongation ≥21% (no cracks after cold bending test)
"WB36" is a grade of seamless steel pipe used in high-pressure boilers, mainly applied in the power industry (such as high-temperature and high-pressure components like superheaters and reheaters in power station boilers).
3. Application Scenarios and Advantages
High-temperature and high-pressure environment
Operating temperature: 450℃ to 550℃ (Creep performance should be considered for long-term use).
Working pressure: ≤10 MPa (depending on the boiler design).
Applicable media: Steam, superheated steam.
(2) Material advantages
Low cost: Compared with alloy steel pipes (such as 15CrMo, 12Cr1MoV), WB36 is cheaper.
Good processing performance: Easy to weld and cold-bend into shape.
Oxidation resistance: The surface oxide film remains stable in high-temperature steam.
4. Design and manufacturing considerations
(1) Welding process
Welding method: Argon arc welding (TIG) or electrode arc welding (SMAW) should be adopted. Heat treatment (stress relief) is required after welding.
Welding material selection: It is recommended to use low alloy electrodes that match the base material (such as J507).
Non-destructive testing: The weld seams need to undergo RT (Radiographic testing) or UT (ultrasonic testing).
(2) Heat treatment
Normalizing + tempering: Eliminate welding residual stress and enhance material toughness.
Solution treatment (if necessary) : for cold-worked deformed parts.
(3) Corrosion and wear
Medium corrosion: In sulfur-containing vapor environments, attention should be paid to sulfide stress corrosion cracking (SSCC), and surface treatment should be carried out if necessary.
Erosion wear: In areas with high flow rates (such as elbows), the wall thickness should be increased or wear-resistant coatings should be applied.
5. Comparison with other materials
Material WB36 (20G), 15CrMo, 12Cr1MoV
Applicable temperature: ≤550℃, ≤550℃, ≤580℃
The strength is medium to high and even higher
The cost is low to medium high
Excellent antioxidant properties
9. Summary
WB36 (20G) is a cost-effective high-pressure boiler tube material, suitable for the pressure-bearing components of conventional power station boilers. When designing, special attention should be paid to the welding process, heat treatment and long-term high-temperature creep performance. In high-temperature and high-pressure systems, it is recommended to combine finite element analysis (FEA) to optimize the structural design and ensure safe and reliable operation.
|
|
